WIRE ROPE

와이어로프의 종류 - 섬유로프


《 섬유로프 용도 및 특징, 규격 》


◆　형광로프

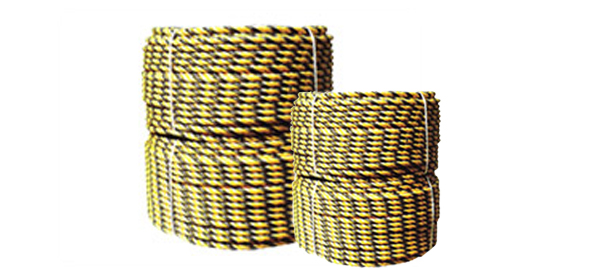

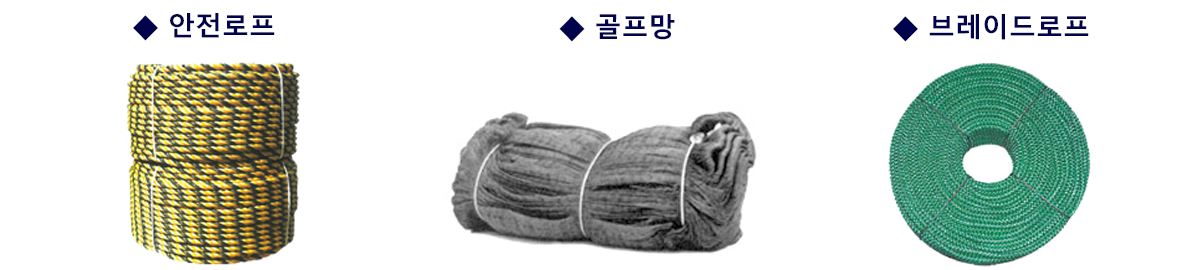

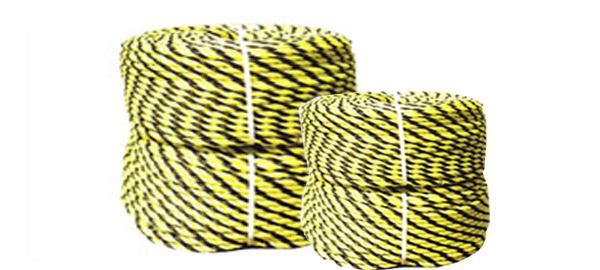

◆　안전로프




◆　단라인로프(P.P. DANLINE)




◆　폴리프로필렌로프(P.P. MONO)




◆　폴리에틸렌로프(P.E)




◆　나일론8연로프(NYLON8-STRABDROPE)




◆　비닐론(구라론)로프(KURALON ROPE)

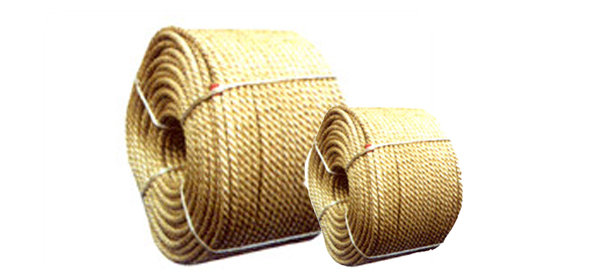

◆　마닐라로프(MANILA ROPE)



직 경 단라인로프 P.P. DANLINE 폴리에틸렌로프 P.E 마닐라로프 MANILA
DIC 중 량 인장강도 중 량 인장강도 중 량 인장강도
mm inch 分 kg/200m ton kg/200m ton kg/200m ton
4 5/32 1.3 1.5 0.22 1.6 0.18 2.22 0.13
5 3/16 1.6 2.35 0.34 2.5 0.30 3.4 0.20
6 1/4 2.0 3.5 0.50 3.6 0.42 5.0 0.28
8 5/16 2.5 6.2 0.85 6.4 0.75 9.5 0.47
9 3/8 3.0 7.8 1.06 8.1 0.91 12.0 0.59
10 13/32 3.5 9.6 1.29 10.0 1.11 14.0 0.72
12 15/32 4.0 13.9 1.80 15.0 1.20 21.0 1.01
14 9/16 4.5 18.8 2.40 19.0 1.80 28.0 1.34
16 5/8 5.0 24.2 3.00 25.0 2.20 38.0 1.72
18 23/32 6.0 30.8 3.80 32.0 3.00 44.0 2.14
20 13/16 6.5 38.0 3.80 40.0 3.60 55.0 2.61
22 7/8 7.0 46.0 5.60 48.0 4.20 66.0 3.11
24 15/16 8.0 54.7 6.50 57.0 5.00 80.0 3.66
26 1 1/32 9.0 63.8 7.50 67.0 5.80 94.0 4.24
28 1 1/3 9.5 73.6 8.50 78.0 6.50 106.0 4.87
30 1 3/16 10.0 85.2 9.90 90.0 7.40 125.0 5.54
32 1 1/4 11.0 96.7 11.0 102.0 8.20 140.0 6.30
34 1 11/32 11.5 110.0 12.4 115.0 9.20 159.0 7.00
36 1 7/16 12.0 122.0 13.7 129.0 10.4 178.0 7.80
38 1 1/2 13.0 135.0 15.1 114.0 11.5 199.0 8.60
40 1 19/32 13.5 152.0 16.7 159.0 12.5 230.0 9.70
42 1 21/32 14.0 167.0 18.5 176.0 13.5 243.0 10.7
45 1 25/32 15.0 191.0 20.7 203.0 15.5 278.0 12.5
48 1 7/8 16.0 218.0 23.6 229.0 17.6 317.0 13.8
50 2 16.5 236.0 25.5 249.0 19.0 345.0 14.7
52 2 1/16 17.0 256.0 27.3 270.0 20.2 374.0 15.8
55 2 5/32 18.0 286.0 30.0 300.0 22.0 417.0 17.6
60 2 3/8 20.0 340.0 35.5 360.0 26.0 496.0 20.7
65 2 9/16 21.5 399.0 41.5 425.0 30.0 581.0 24.0
70 2 3/4 23.0 463.0 40.7 492.0 35.0 674.0 27.6
