◎ 재 질 : 주강
◎ 표면처리 : 전기아연도금

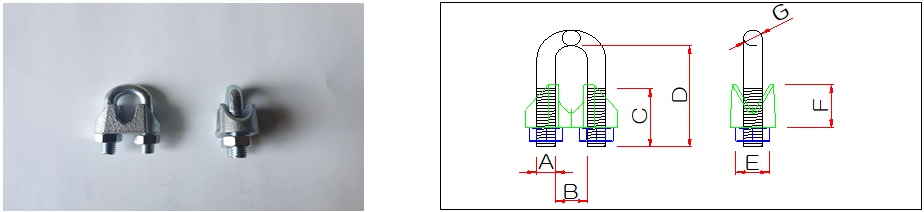

| 규격(inch) | 적용로프(mm) | 치수(mm) | 무게(kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||
| 1/8" | 3 | 3 | 11 | 14 | 20 | 8 | 10 | 4 | 0.01 |
| 3/16" | 5 | 5 | 13 | 16 | 24 | 11 | 13 | 5 | 0.02 |
| 1/4" | 6 | 6.3 | 18 | 20 | 31 | 12.5 | 15 | 6.5 | 0.04 |
| 5/16" | 8 | 8 | 18 | 22 | 34 | 12.5 | 16 | 6.5 | 0.06 |
| 3/8" | 10 | 9.5 | 22 | 27 | 42 | 13.5 | 22 | 8 | 0.10 |
| 1/2" | 12 | 11.2 | 27 | 35 | 54 | 16.7 | 23 | 9.5 | 0.15 |
| 5/8" | 16 | 12.5 | 33 | 40 | 59 | 18.5 | 28 | 11 | 0.25 |
| 3/4" | 18 | 14.3 | 34 | 42 | 68 | 21 | 33 | 12.5 | 0.35 |
| 7/8" | 22 | 16 | 41 | 46 | 78 | 23 | 38 | 13.7 | 0.50 |
| 1" | 25 | 16 | 45 | 50 | 87 | 22.3 | 43 | 14 | 0.60 |
| 1-1/8" | 28.6 | 19 | 51 | 50 | 100 | 28 | 50 | 17 | 1.00 |
