ALUMINUM FERULE

와이어로프 부품 - 알루미늄 페럴

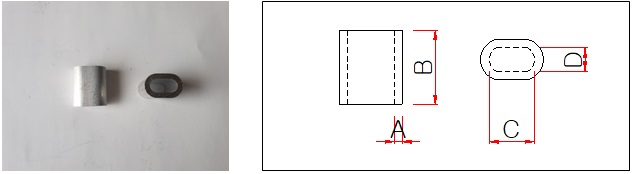

《 알루미늄페럴 구조 및 규격 》



◆　알루미늄 페럴(Aluminium Ferrule)

◎ 재 질 : Aluminium alloy

규격
(Rope공칭경)		 치수(mm)

무게
(kg/1,000pcs)
A B C D
1 0.65 5 2.4 1.2 0.094
1.5 0.75 6 3.4 1.7 0.211
2 0.85 7 4.4 2.2 0.375
2.5 1.05 9 5.4 2.7 0.499
3 1.25 11 6.6 3.3 0.843
3.5 1.5 13 7.6 3.8 1.32
4 1.7 14 8.8 4.4 1.81
4.5 1.9 16 9.8 4.9 2.61
5 2.1 18 11 5.5 3.57
6 2.5 21 13.2 6.6 5.86
6.5 2.7 23 14.4 7.2 7.55
7 2.9 25 15.6 7.8 9.50
8 3.3 28 17.6 8.8 13.70
9 3.7 32 19.8 9.9 19.80
10 4.1 35 21.8 10.9 26.40
11 4.5 39 24.2 12.1 35.80
12 4.9 42 26.4 13.2 45.80
13 5.4 46 28.4 14.2 59.70
14 5.8 49 30.6 15.3 73.50
16 6.7 56 35 17.5 111
18 7.6 63 39.2 19.6 156
20 8.4 70 43.4 21.7 217
22 9.2 77 48.6 24.3 292
24 10 84 52.8 26.4 376
26 10.9 91 57 28.5 481
28 11.7 98 62 31 603
30 12.5 105 66.2 33.1 739
32 13.4 112 70.4 35.2 897
34 14.2 119 75.6 37.8 1,077
36 15 126 79.6 39.8 1,275
38 15.8 133 83.8 41.9 1,503
40 16.6 140 88 44 1,734
