◎ 재 질 : 탄소강◎ 표면처리 : 전기아연도금

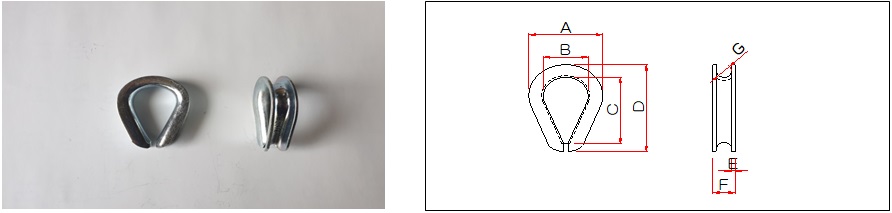

| 규격(inch) | 적용로프(mm) | 치수(mm) | 무게(kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||
| 1/4" | 6 | 36 | 22 | 42 | 55 | 1.5 | 11 | 4 | 0.03 |
| 5/16" | 8 | 46 | 26 | 47 | 64 | 2 | 13 | 4.5 | 0.05 |
| 3/8" | 10 | 52 | 28 | 52 | 71 | 3 | 18 | 6 | 0.10 |
| 1/2" | 12 | 68 | 38 | 64 | 87 | 3.5 | 22 | 7.5 | 0.23 |
| 5/8" | 16 | 81 | 46 | 76 | 104 | 3.5 | 25 | 9 | 0.34 |
| 3/4" | 18 | 93 | 51 | 91 | 124 | 5 | 32 | 11 | 0.70 |
| 7/8" | 22 | 104 | 58 | 101 | 137 | 5 | 36 | 13 | 0.80 |
| 1" | 25 | 123 | 65 | 105 | 151 | 6 | 42 | 15 | 1.40 |
| 1-1/8" | 28.6 | 138 | 73 | 123 | 175 | 6 | 50 | 19 | 1.80 |
| 1-3/8" | 35 | 165 | 86 | 153 | 222 | 8 | 60 | 22 | 4.00 |
